Products include:
1pcs BPI-M2 Pro board
Product Size:
BPI-M2 Pro:
length 10.5cm
wide7.8cm
high 2cm
=========================

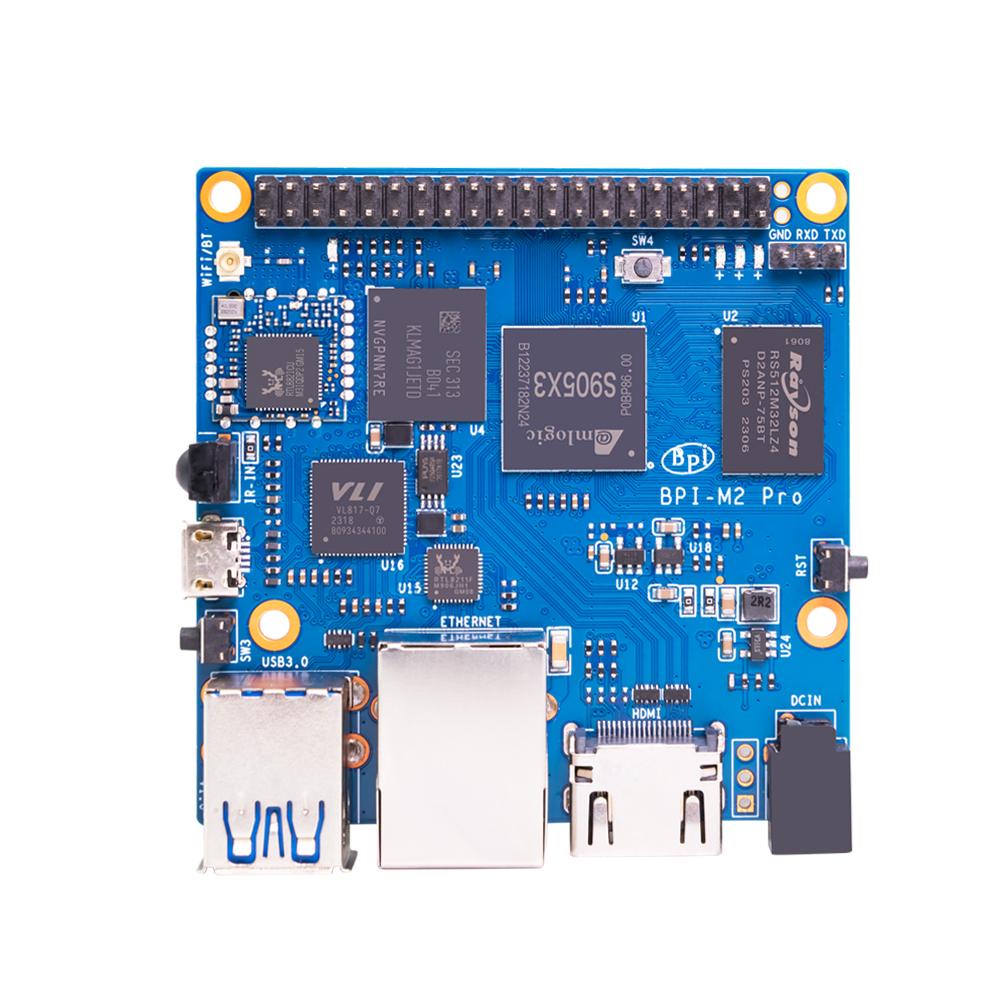

BPI-M2 Pro Introduction
--------------------------------
Banana Pi BPI-M2 Pro is the next generation single board computer from Banana Pi in 2021. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor.Onboard 2GB LPDDR4 memory and 16GB EMMC storage, and supports 2 USB 3.0 interface, a gigabit network port. RT8821CU wifi&BT onboard. 1 HDMI output
BPI-M2 Pro same size as Banana Pi BPI-M2+ , and interface is also same .so can use BPI-M2+ case.
===================================================================
Key Features
--------------------------------
Amlogic S905X3 quad core Cortex-A55 (2.0xxGHz)
Mali-G31 GPU
2GB LPDDR4
16GB eMMC flash
2 USB 3.0
RTL8821CU WiFi&BT 4.2 onboard
1 GbE ethernet
HDMI output
=====================================================================
Hardware spec
---------------------------------
HardWare Specification of Banana pi BPI-M2 Pro
CPU Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory 2 GB LPDDR4
Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network 10/100/1000 Mbit/s Ethernet
Wifi&BT Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
Video Output(s) 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s) 1 x HDMI digital output
USB ports 2x USB 3.0 host ports, 1x micro USB OTG port
GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches Reset, Power and U-boot
LED Power Status and Activity status
Power Source 5 volt @3A via DC port
Size & Weight 65mm×65mm, 58g
OS Android and Linux
