Feature:
1. Durable Materials: Constructed from 316L stainless steel front cover and anti fog curved glass cover, can be used for a long time even in acid, alkali and humid environments. Anti fog, IP67 waterproof and dustproof, very suitable for harsh sea environment.
2. Accurate Display: Stepper motor drives the pointer to accurately display the remaining fuel level F?12?E, the fuel pressure 0?5BAR (72.5PSI), the water temperature of the water tank 40?120 celsius and the voltmeter 8?16V, can be displayed simultaneously.
3. Red Pointer Indication: The red pointer design has the characteristics of high indication accuracy, good repeatability, strong versatility, reliability and stability and easy to use. Comes with red backlight for easy night driving.
4. Excellent Performance: 4 in 1 multifunction meter adopts ultra wide working voltage design, the long term working voltage is 8?16V, and the maximum can reach 36V. With the advantages of low power consumption, long life, high accuracy and short start up time.
5. Wide Uses: The connection harness adopts a snap design for firm connection, making the gauge work even under strong vibration, and can be used for engines, generator sets, ships, construction machinery, agricultural machinery, various vehicle modifications, and so on.
Specification:

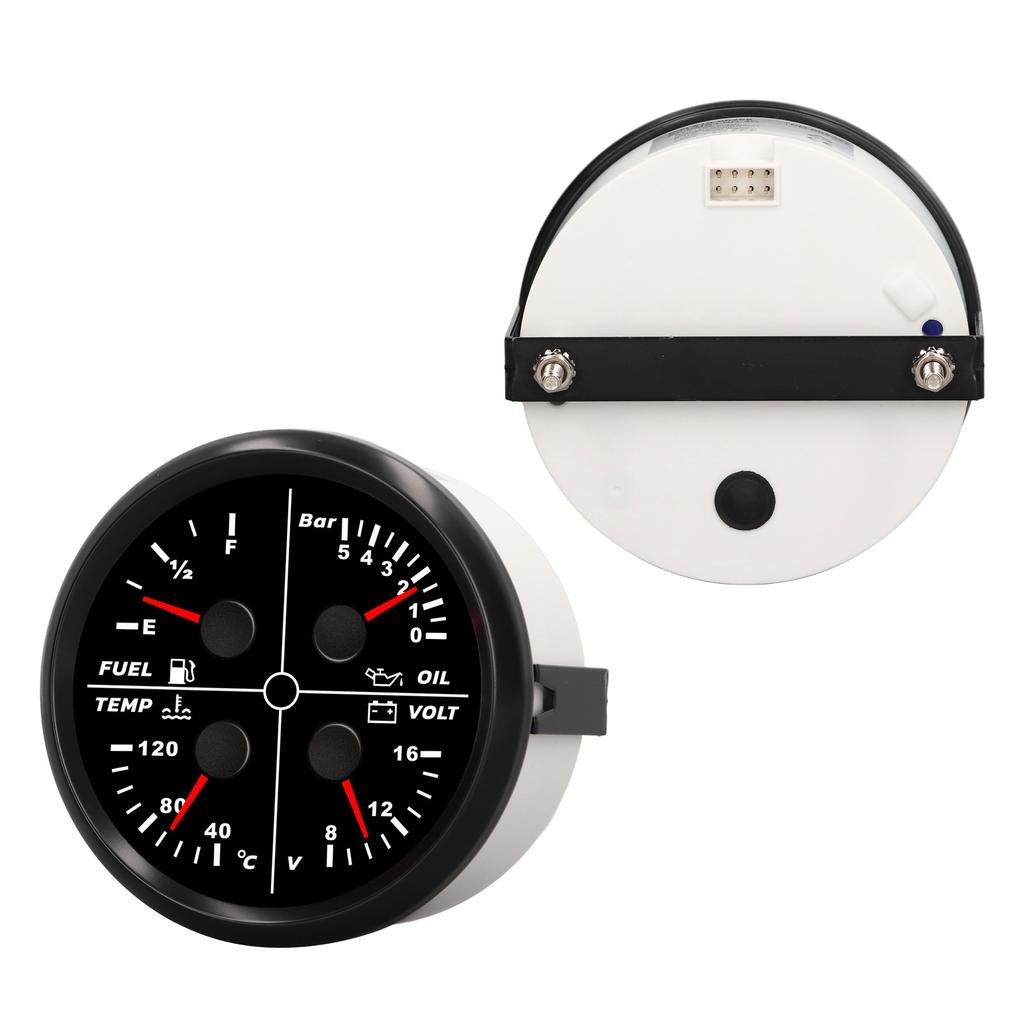

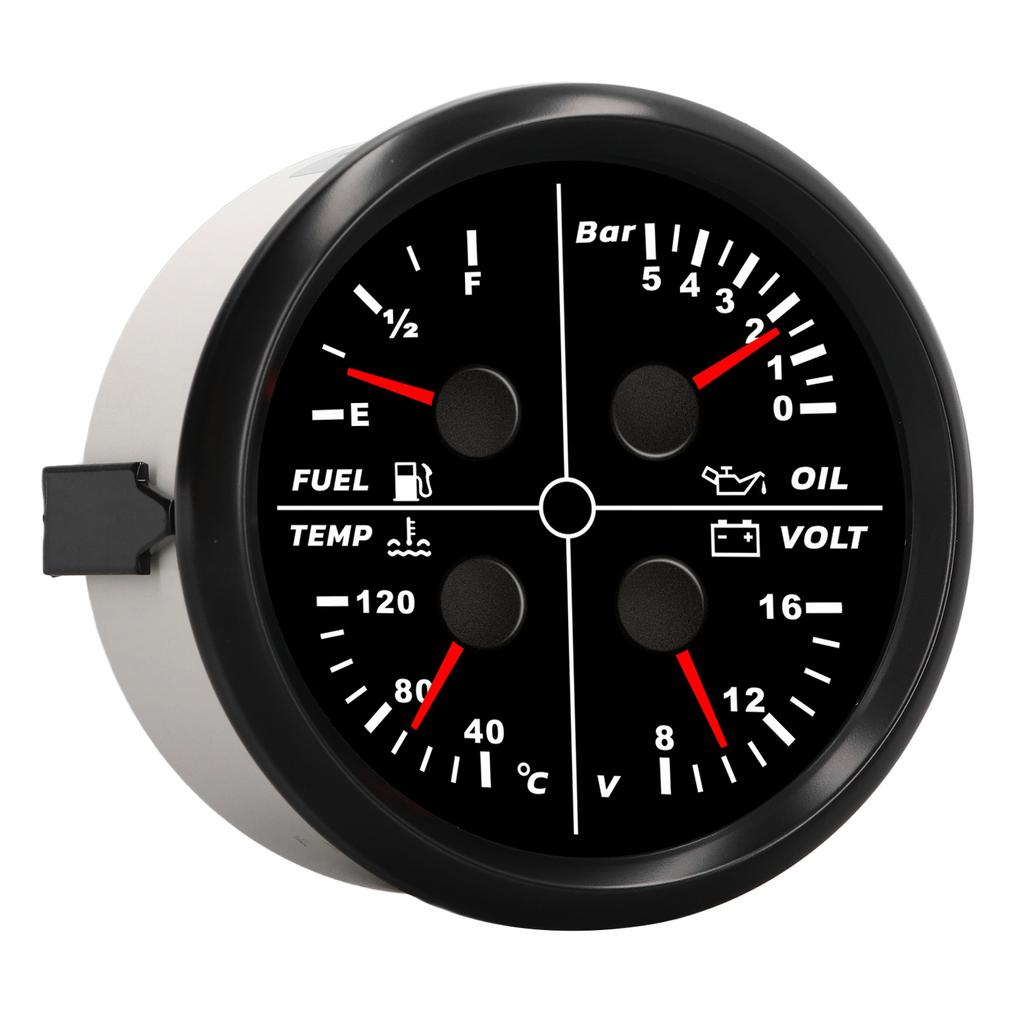

Item Type: 4 in 1 Gauge
Material: 316L Stainless Steel Bezel, Anti Fog Glass, PC
Function Display: Fuel level, oil pressure, water temperature, voltage
Installation Diameter: Approx. 85mm 338in
Fuel Level Gauge Indication Range: F12E, signal input 0190ohm
Oil Pressure Gauge Indication Range: 05Bar 72PSI, signal input 10184ohm
Water Temperature Gauge Indication Range: 40120 celsius , model input 31023ohm
Protection Grade: IP67, the whole body is completely waterproof, can work at 1m underwater; excellent anti fog function
Input Signal: Stepper Motor
Backlight Color: Red
Working Voltage: 816VDC
Working Current: less than 120mA
Operating Temperature: 30 celsius to +75 celsius
Storage Temperature: 40 celsius to +85 celsius .
Package List:
1 x 4 in 1 Gauge1 x Harness1 x ManualDurable Materials: Constructed from 316L stainless steel front cover and anti fog curved glass cover, can be used for a long time even in acid, alkali and humid environments. Anti fog, IP67 waterproof and dustproof, very suitable for harsh sea environmen
Accurate Display: Stepper motor drives the pointer to accurately display the remaining fuel level F?12?E, the fuel pressure 0?5BAR (72.5PSI), the water temperature of the water tank 40?120 celsius and the voltmeter 8?16V, can be displayed simultaneously.
Red Pointer Indication: The red pointer design has the characteristics of high indication accuracy, good repeatability, strong versatility, reliability and stability and easy to use. Comes with red backlight for easy night driving.
Excellent Performance: 4 in 1 multifunction meter adopts ultra wide working voltage design, the long term working voltage is 8?16V, and the maximum can reach 36V. With the advantages of low power consumption, long life, high accuracy and short start up t
Wide Uses: The connection harness adopts a snap design for firm connection, making the gauge work even under strong vibration, and can be used for engines, generator sets, ships, construction machinery, agricultural machinery, various vehicle modificatio
