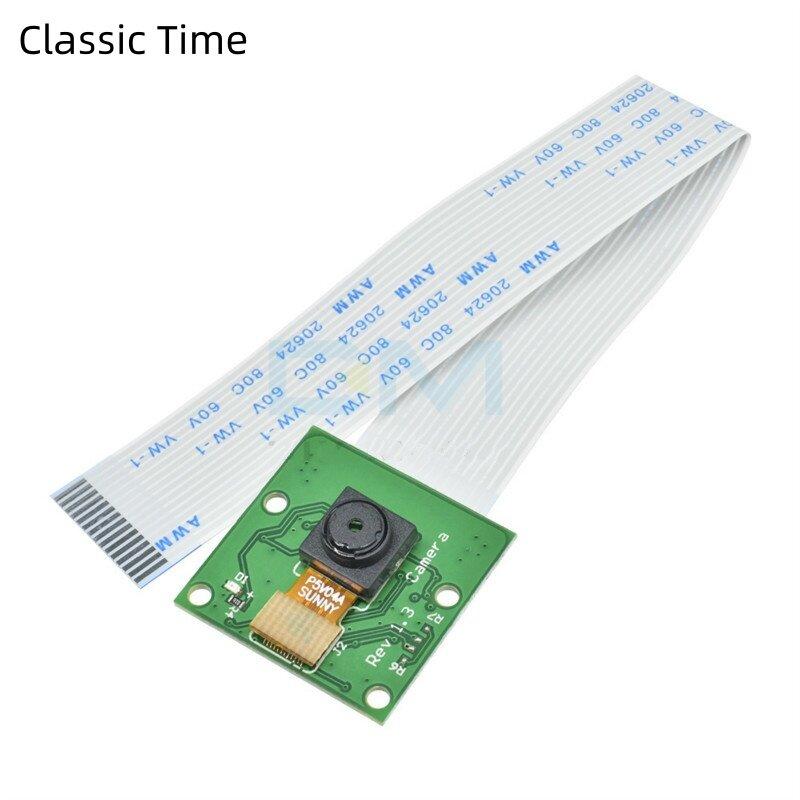

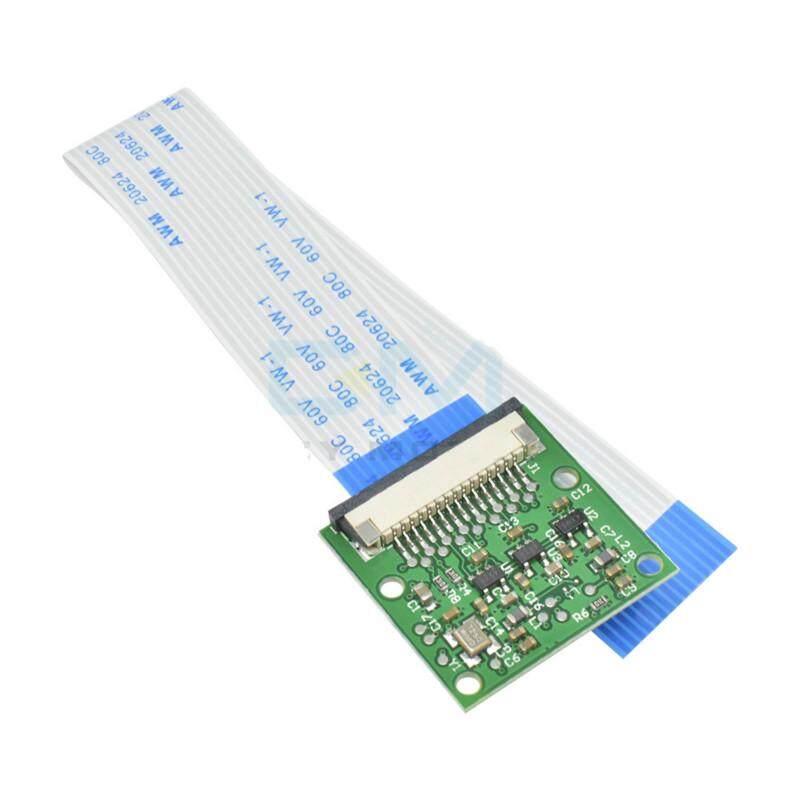

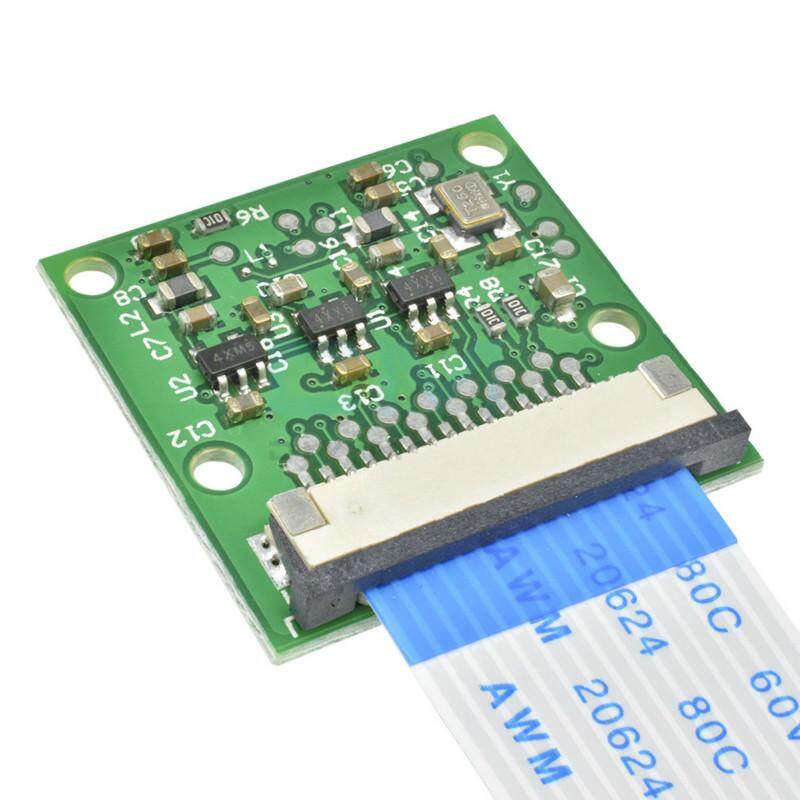

Raspberry Pi 3 Camera Module China Version Drop 500 mega pixel 15cm cable

Raspberry Pi 3 Camera Module China Version Drop 500 mega pixel 15cm cable

shot:1/4 5M

Aperture:2.9

focal length:3.29

FOV:72.4

Sensor type: OmniVision OV5647 Color CMOS QSXGA (5-megapixel)

Sensor size: 3.67 x 2.74 mm (1/4" format)

Pixel Count: 2592 x 1944

Pixel Size: 1.4 x 1.4 um

Lens: f=3.6 mm, f/2.9

Angle of View: 54 x 41 degrees

Field of View: 2.0 x 1.33 m at 2 m

Full-frame SLR lens equivalent: 35 mm

Fixed Focus: 1 m to infinity

Video: 1080p at 30 fps with codec H.264 (AVC)

Up to 90 fps Video at VGA

Board size: 25 x 24 mm (not including flex cable)

Because the focal length of the lens is roughly the same as the width of the sensor, it is easy to remember the field of view: at x meters away, you can see about x meters horizontally, assuming 4x3 stills mode. Horizontal field of view in 1080p video mode is 75% of that (75% H x 55% V sensor crop for 1:1 pixels at 1920x1080).

References: Focal length and f-stop measurements ,depth of field & angle of view calculators sensor info f-stop measurement

Package Included:

1pcs X Raspberry Pi 3 Camera Module
